MSO7102T(Oscillo scope)
|
sec/div
|
2.0ns, 5.0ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns,
1.0us, 2.0us, 5.0us, 10us, 20us, 50us, 100us, 200us, 500us,
1.0ms, 2.0ms, 5.0ms, 10ms, 20ms, 50ms, 100ms, 200ms, 500ms,
1s, 2.0s, 5s, 10s, 20s, 50s, 100s
|
|
volt/div
|
|
Probe
|
volt/div
|
|
1 X
|
2.00mv, 5.00mv,
10.0mv, 20mv, 50mv,
100mv, 200mv, 500mv,
1.00v, 2.00v, 5.00v,
10.00v
|
|
10 X
|
20mv, 50mv,
100mv, 200mv, 500mv,
1v, 2v, 5v,
10v, 20v, 50v,
100v
|
|
100 X
|
200mv, 500mv,
1v, 2v, 5v,
10v, 20v, 50v,
100v, 200v, 500v,
1000v
|
|
1000 X
|
2v, 5v,
10v, 20v, 50v,
100v, 200v, 500v,
1000v, 2000v, 5000v,
10000v
|
|
輝度調整：見当たらない。。。
|

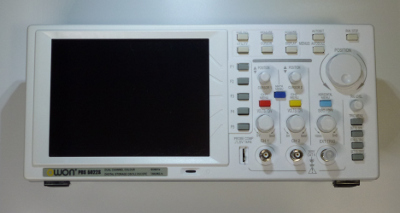

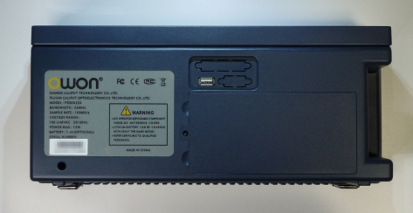

PDS5022S
|
sec/div
|
5.0ns, 10ns, 25ns, 50ns, 100ns, 250ns, 500ns,
1.0us, 2.5us, 5.0us, 10us, 25us, 50us, 100us, 250us, 500us,
1.0ms, 2.5ms, 5.0ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms,
1s, 2.5s, 5s, 10s, 25s, 50s, 100s
|
|
volt/div
|
|
Probe
|
volt/div
|
|
1 X
|
5.00mv,
10mv, 20mv, 50mv
100mv, 200mv, 500mv
1.00v, 2.00v, 5.00v
|
|
10 X
|
50mv
100mv, 200mv, 500mv
1v, 2v, 5v
10v, 20v, 50v
|
|
100 X
|
500mv
1v, 2v, 5v
10v, 20v, 50v
100v, 200v, 500v
|
|
1000 X
|
5v
10v, 20v, 50v
100v, 200v, 500v
1000v, 2000v, 5000v
|
|
輝度調整：フロントパネルのつまみ
|
