MSO7102T ロジアナ付きデジタルオシロスコープ

OWONのMSO7102Tロジアナ付きオシロスコープを買ってみた。
既にPDS5022Sを持っているんでオシロとしては2台目(性能はMSO7102Tが上)になってしまうんだけど
PCで制御するUSBオシロ/USBロジアナじゃないスタンドアロンタイプのロジアナが欲しかったのでこれを選択。

その他、RIGOL,ATTENの激安オシロも考えたが登録しないとマニュアル入手できないだとか
初期不良品にあたってしまったときのことなど考えて今回OWON製にした。
RIGOLのオシロは、Linuxマシンからコントロール＆データGetできるみたいなのだが
今回特に自動測定とかしたいわけじゃないので、、、でも機会があれば使ってみたい。。。(^^)

しかし意外にgoogle検索してもOWONのMSO系のレビューがない。。。youtubeですこし動画がupされているくらい。
なので、一応使いながらレビューでも書いておこう。

名称	価格	購入先	製造元
MSO7102T	￥91,800	アテックス(株) e-PLAZAX (Amazonから)	OWON(Lilliput社)

価格は、2013.02.17現在

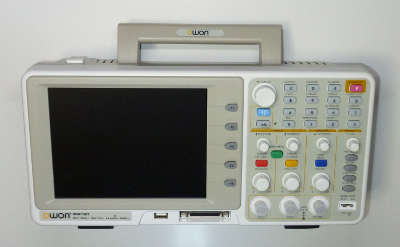

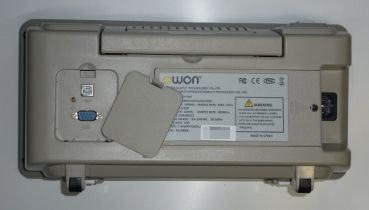

本体(正面)	本体(背面、232CとUSBコネクタが隠れているカバーを外したところ)

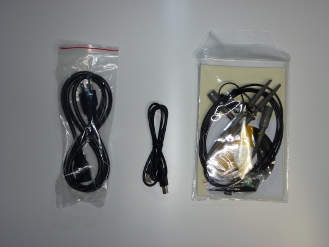

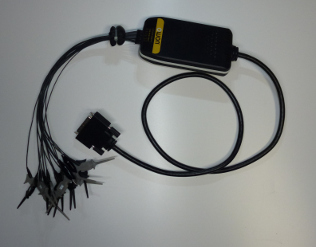

Logic analyzer module	その他添付品
プローブの根っこの方でmoduleとの接続部あたりの黒いのは、ぐらつかないように自分で束をまとめてスペーサつけてインシュロックで止めている。それも写ってしまっているが購入したものにはそんなものは付いていないので、あしからず。

で、MSO7102TのUSBは2つあるわけだが、正面のUSBがUSBホスト側でここにUSBメモリを挿して
画面情報の取得ができる。
オシロモードでは、WAVEx.BIN(xは、数字)となるバイナリーファイルもしくは、
どちらか一方が書き込まれ
ロジアナモードでは、[UTILITY]メニューの[Carry]で選択して
DATAx.BIN(xは、数字)となるバイナリーファイルの2種類の選択ができる。

これらのBINファイルは、付属されているwindowソフトで扱うことができる。
また、背面のUSB portとPCを繋げて添付されているソフトでBINデータの取得、BMPの取得と各々のviewが可能。

個人的にはPDS5022では普段、背面USBとLinuxマシンとUSB接続してオシロ画面BINを
オープンソースソフト(owondump)でGet＆変換して使っていたので、
MSO7102Tもオシロモードでもロジアナモードでもそうしたかったのだけど
どうも、ロジアナモードのBIN取得するためのコマンドは、オシロモードのときと異なるようだ。

ただ個人的にはオシロとして使う場合は付属のソフトを使うよりもowondumpを修正するなりしてBINデータをgetして
そのデータをgnuplotでグラフを描かせたほうが好みのグラフができるような感じ。
ロジアナモードでもBMPなら(若干編集した)owondumpを使ってGetできる。

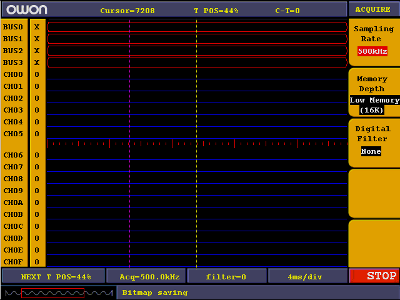

でロジアナ画面をGetしたときのビットマップは、こんな感じ(現物のサイズは640x480)
なにもモニターしていないんでここではALL LOWですが。。。

この画像は、pngに変換してサイズも小さくしています。

LinuxマシンとMSO7102Tの背面USBを繋げて画面情報GetするためにMSO7102TのUSBデバイスとしての
VIDとPIDは、

[hoge]$ lsusb
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
........
Bus 002 Device 006: ID 5345:1234 Owon PDS6062T Oscilloscope

となり、うちのLinuxマシンでの認識は、ID 5345:1234 Owon PDS6062T Oscilloscope
ってことのようだ。当然ですが、これはロジアナモードにしてもオシロモードにしても同じ結果だった。
ってか、PDS5022Sと同じ(VID:5345, PID:1234)。。。なのでrulesファイルの変更内容は、PDS5022Sと共通です。
rulesファイルの変更方法は、ここです→USB機器を一般ユーザ権限のプログラム上から制御する設定
この設定で一般ユーザでもUSBデバイスにアクセスが可能になる。

▲ ▼

MSO7102Tの一部仕様

MSO7102T(Logic analyzer)

ACQUIRE	Memory Depth	Time scale (sec/div)
20Hz	Low Memory (16K)	250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div, 25s/div, 50s/div, 100s/div
	Deep Memory (4M)	250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div, 25s/div, 50s/div, 100s/div, 250s/div, 500s/div, 1000s/div, 2500s/div, 5000s/div, 10000s/div, 25000s/div
	General (256K)	250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div, 25s/div, 50s/div, 100s/div, 250s/div, 500s/div, 1000s/div, 2500s/div
50Hz	Low Memory (16K)	100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div, 10s/div, 20s/div, 40s/div
	Deep Memory (4M)	100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div, 10s/div, 20s/div, 40s/div, 100s/div, 200s/div, 400s/div, 1000s/div, 2000s/div, 4000s/div, 10000s/div
	General (256K)	100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div, 10s/div, 20s/div, 40s/div, 100s/div, 200s/div, 400s/div, 1000s/div
100Hz	Low Memory (16K)	50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div, 5s/div, 10s/div, 20s/div
	Deep Memory (4M)	50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div, 5s/div, 10s/div, 20s/div, 50s/div, 100s/div, 200s/div, 500s/div, 1000s/div, 2000s/div, 5000s/div
	General (256K)	50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div, 5s/div, 10s/div, 20s/div, 50s/div, 100s/div, 200s/div, 500s/div
200Hz	Low Memory (16K)	25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div
	Deep Memory (4M)	25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div, 25s/div, 50s/div, 100s/div, 250s/div, 500s/div, 1000s/div, 2500s/div
	General (256K)	25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div, 25s/div, 50s/div, 100s/div, 250s/div
500Hz	Low Memory (16K)	10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div
	Deep Memory (4M)	10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div, 10s/div, 20s/div, 40s/div, 100s/div, 200s/div, 400s/div, 1000s/div
	General (256K)	10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div, 10s/div, 20s/div, 40s/div, 100s/div
1kHz	Low Memory (16K)	5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div
	Deep Memory (4M)	5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div, 5s/div, 10s/div, 20s/div, 50s/div, 100s/div, 200s/div, 500s/div
	General (256K)	5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div, 5s/div, 10s/div, 20s/div, 50s/div
2kHz	Low Memory (16K)	2.5ms/div, 5ms/div, 10ms/div, 25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div
	Deep Memory (4M)	2.5ms/div, 5ms/div, 10ms/div, 25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div, 25s/div, 50s/div, 100s/div, 250s/div
	General (256K)	2.5ms/div, 5ms/div, 10ms/div, 25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div, 25s/div
5kHz	Low Memory (16K)	1ms/div, 2ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div
	Deep Memory (4M)	1ms/div, 2ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div, 10s/div, 20s/div, 40s/div, 100s/div
	General (256K)	1ms/div, 2ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div, 10s/div
10kHz	Low Memory (16K)	500us/div, 1ms/div, 2ms/div, 5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div
	Deep Memory (4M)	500us/div, 1ms/div, 2ms/div, 5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div, 5s/div, 10s/div, 20s/div, 50s/div
	General (256K)	500us/div, 1ms/div, 2ms/div, 5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div, 5s/div
20kHz	Low Memory (16K)	250us/div, 500us/div, 1ms/div, 2.5ms/div, 5ms/div, 10ms/div, 25ms/div, 50ms/div, 100ms/div
	Deep Memory (4M)	250us/div, 500us/div, 1ms/div, 2.5ms/div, 5ms/div, 10ms/div, 25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div, 2.5s/div, 5s/div, 10s/div, 25s/div
	General (256K)	250us/div, 500us/div, 1ms/div, 2.5ms/div, 5ms/div, 10ms/div, 25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div, 2.5s/div
50kHz	Low Memory (16K)	100us/div, 200us/div, 400us/div, 1ms/div, 2.5ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div
	Deep Memory (4M)	100us/div, 200us/div, 400us/div, 1ms/div, 2.5ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div, 1s/div, 2s/div, 4s/div, 10s/div
	General (256K)	100us/div, 200us/div, 400us/div, 1ms/div, 2.5ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div, 1s/div
100kHz	Low Memory (16K)	50us/div, 100us/div, 200us/div, 500us/div, 1ms/div, 2ms/div, 5ms/div, 10ms/div, 20ms/div
	Deep Memory (4M)	50us/div, 100us/div, 200us/div, 500us/div, 1ms/div, 2ms/div, 5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div, 500ms/div, 1s/div, 2s/div, 5s/div
	General (256K)	50us/div, 100us/div, 200us/div, 500us/div, 1ms/div, 2ms/div, 5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div, 500ms/div
200kHz	Low Memory (16K)	25us/div, 50us/div, 100us/div, 250us/div, 500us/div, 1ms/div, 2.5ms/div, 5ms/div, 10ms/div
	Deep Memory (4M)	25us/div, 50us/div, 100us/div, 250us/div, 500us/div, 1ms/div, 2.5ms/div, 5ms/div, 10ms/div, 25ms/div, 50ms/div, 100ms/div, 250ms/div, 500ms/div, 1s/div, 2.5s/div
	General (256K)	25us/div, 50us/div, 100us/div, 250us/div, 500us/div, 1ms/div, 2.5ms/div, 5ms/div, 10ms/div, 25ms/div, 50ms/div, 100ms/div, 250ms/div
500kHz	Low Memory (16K)	10us/div, 20us/div, 40us/div, 100us/div, 200us/div, 400us/div, 1ms/div, 2ms/div, 4ms/div
	Deep Memory (4M)	10us/div, 20us/div, 40us/div, 100us/div, 200us/div, 400us/div, 1ms/div, 2ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div, 100ms/div, 200ms/div, 400ms/div, 1s/div
	General (256K)	10us/div, 20us/div, 40us/div, 100us/div, 200us/div, 400us/div, 1ms/div, 2ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div, 100ms/div
1MHz	Low Memory (16K)	5us/div, 10us/div, 20us/div, 50us/div, 100us/div, 200us/div, 500us/div, 1ms/div, 2ms/div
	Deep Memory (4M)	5us/div, 10us/div, 20us/div, 50us/div, 100us/div, 200us/div, 500us/div, 1ms/div, 2ms/div, 5ms/div, 10ms/div, 20ms/div, 50ms/div, 100ms/div, 200ms/div, 500ms/div
	General (256K)	5us/div, 10us/div, 20us/div, 50us/div, 100us/div, 200us/div, 500us/div, 1ms/div, 2ms/div, 5ms/div, 10ms/div, 20ms/div, 50ms/div
2.5MHz	Low Memory (16K)	2us/div, 4us/div, 8us/div, 20us/div, 40us/div, 80us/div, 200us/div, 400us/div, 800us/div
	Deep Memory (4M)	2us/div, 4us/div, 8us/div, 20us/div, 40us/div, 80us/div, 200us/div, 400us/div, 800us/div, 2ms/div, 4ms/div, 8ms/div, 20ms/div, 40ms/div, 80ms/div, 200ms/div
	General (256K)	2us/div, 4us/div, 8us/div, 20us/div, 40us/div, 80us/div, 200us/div, 400us/div, 800us/div, 2ms/div, 4ms/div, 8ms/div, 20ms/div
5MHz	Low Memory (16K)	1us/div, 2us/div, 4us/div, 10us/div, 20us/div, 40us/div, 100us/div, 200us/div, 400us/div
	Deep Memory (4M)	1us/div, 2us/div, 4us/div, 10us/div, 20us/div, 40us/div, 100us/div, 200us/div, 400us/div, 1ms/div, 2ms/div, 4ms/div, 10ms/div, 20ms/div, 40ms/div, 100ms/div
	General (256K)	1us/div, 2us/div, 4us/div, 10us/div, 20us/div, 40us/div, 100us/div, 200us/div, 400us/div, 1ms/div, 2ms/div, 4ms/div, 10ms/div
12.5MHz	Low Memory (16K)	400ns/div, 800ns/div, 1.6us/div, 4us/div, 8us/div, 16us/div, 40us/div, 80us/div, 160us/div
	Deep Memory (4M)	400ns/div, 800ns/div, 1.6us/div, 4us/div, 8us/div, 16us/div, 40us/div, 80us/div, 160us/div, 400us/div, 800us/div, 1.6ms/div, 4ms/div, 8ms/div, 16ms/div, 40ms/div
	General (256K)	400ns/div, 800ns/div, 1.6us/div, 4us/div, 8us/div, 16us/div, 40us/div, 80us/div, 160us/div, 400us/div, 800us/div, 1.6ms/div, 4ms/div
25MHz	Low Memory (16K)	200ns/div, 400ns/div, 800ns/div, 2us/div, 4us/div, 8us/div, 20us/div, 40us/div, 80us/div
	Deep Memory (4M)	200ns/div, 400ns/div, 800ns/div, 2us/div, 4us/div, 8us/div, 20us/div, 40us/div, 80us/div, 200us/div, 400us/div, 800us/div, 2ms/div, 4ms/div, 8ms/div, 20ms/div
	General (256K)	200ns/div, 400ns/div, 800ns/div, 2us/div, 4us/div, 8us/div, 20us/div, 40us/div, 80us/div, 200us/div, 400us/div, 800us/div, 2ms/div
62.5MHz	Low Memory (16K)	80ns/div, 160ns/div, 320ns/div, 800ns/div, 1.6us/div, 3.2us/div, 8us/div, 16us/div, 32us/div
	Deep Memory (4M)	80ns/div, 160ns/div, 320ns/div, 800ns/div, 1.6us/div, 3.2us/div, 8us/div, 16us/div, 32us/div, 80us/div, 160us/div, 320us/div, 800us/div, 1.6ms/div, 3.2ms/div, 8ms/div
	General (256K)	80ns/div, 160ns/div, 320ns/div, 800ns/div, 1.6us/div, 3.2us/div, 8us/div, 16us/div, 32us/div, 80us/div, 160us/div, 320us/div, 800us/div
125MHz	Low Memory (16K)	40ns/div, 80ns/div, 160ns/div, 400ns/div, 800ns/div, 1.6us/div, 4us/div, 8us/div, 16us/div
	Deep Memory (4M)	40ns/div, 80ns/div, 160ns/div, 400ns/div, 800ns/div, 1.6us/div, 4us/div, 8us/div, 16us/div, 40us/div, 80us/div, 160us/div, 400us/div, 800us/div, 1.6ms/div, 4ms/div
	General (256K)	40ns/div, 80ns/div, 160ns/div, 400ns/div, 800ns/div, 1.6us/div, 4us/div, 8us/div, 16us/div, 40us/div, 80us/div, 160us/div, 400us/div
250MHz	Low Memory (16K)	20ns/div, 40ns/div, 80ns/div, 200ns/div, 400ns/div, 800ns/div, 2us/div, 4us/div, 8us/div
	Deep Memory (4M)	invalid
	General (256K)	invalid
500MHz	Low Memory (16K)	10ns/div, 20ns/div, 40ns/div, 100ns/div, 200ns/div, 400ns/div, 1us/div, 2us/div, 4us/div
	Deep Memory (4M)	invalid
	General (256K)	invalid
1GHz	Low Memory (16K)	5ns/div, 10ns/div, 20ns/div, 50ns/div, 100ns/div, 200ns/div, 500ns/div, 1us/div, 2us/div
	Deep Memory (4M)	invalid
	General (256K)	invalid

▲ ▼
